HT5723Back to products
FEATURES
●Able to withstand use with fuses of up to 400V
●Convenience in connectability and design
●DIN rail or direct placement options available
●Easy connection with thick wiring
●Bolt installation provides stability
*1 Available to leave continuously turns on for long durations.
*2 Use at voltage and current values lower than rated of fuse holders.
-
HT5723
| Rated voltage | Rated amperage *1 | Applicable Wires |
|---|---|---|
| 400V | 100A | Up to 38㎟(M8) |
| Installation | Applicable fuses | Material |
| DIN rails and direct installation | 350GH 125-200 *2 250GH 160-250 *2 |
PBT(body) |

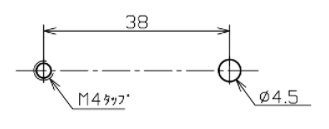

| Name of Approved product | Option | Installing Hole Size |
| - | Holder cover HCT5723 Isolation board HP5723 |
 |
